Angulos._3d.Components.IAngulosComponent Interface Reference

The main interface for a component that is managed by the ECS system. More...

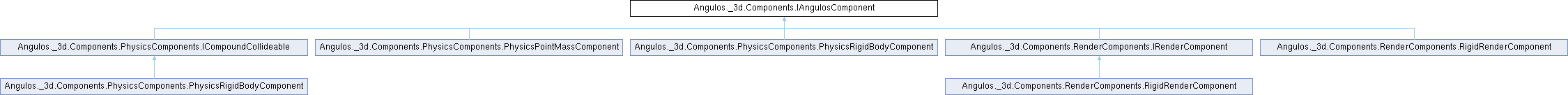

Inheritance diagram for Angulos._3d.Components.IAngulosComponent:

Public Member Functions
void	Start ()
	Start the work.
void	Disable ()
	Pause the work.
void	TickCall ()
	Called every frame.
void	UpdateCall ()
	Called every [UpdateTiming] frames.
void	ParentMeshUpdate ()
	Called when a the parent mesh changes.
void	Destroy ()
	Permanently remove the component/clean up.
void	FrameIndependentUpdate ()
	Called every [FrameIndependentUpdateTiming] units of time. Will be constant, even if a the renderer is frozen. This should not be overused.

Properties
ushort	calls [get, set]
	You shouldn't change this. You can, but it will affect the timing of the UpdateCall call. Just remove the throw new NotImplementedException() in the getter.
bool	Working [get, set]
	If the component is currently working.
ushort	UpdateTiming [get, set]
	The number of calls to do before executing Update. 2 means Tick will be called 2x more than Update.
TimeSpan	FrameIndependentUpdateTiming [get, set]
	The time between each call of the FrameIndependentUpdate method. Measured in actual time, not loops.
SimulatedObject	Parent [get, set]
	The parent object of the component.
bool	HasBeenInitialized [get, set]
	If the component has been initialized. If false, the ECS will call Start() on the component.
bool	EnableFrameIndependentUpdate [get, set]
	If frame independant updates should be performed. This should only be used for time-sensitive components like animation.

Detailed Description

The main interface for a component that is managed by the ECS system.

Member Function Documentation

Destroy()

void Angulos._3d.Components.IAngulosComponent.Destroy

(

)

Permanently remove the component/clean up.

Implemented in Angulos._3d.Components.PhysicsComponents.PhysicsPointMassComponent, Angulos._3d.Components.PhysicsComponents.PhysicsRigidBodyComponent, and Angulos._3d.Components.RenderComponents.RigidRenderComponent.

Disable()

void Angulos._3d.Components.IAngulosComponent.Disable

(

)

Pause the work.

Implemented in Angulos._3d.Components.PhysicsComponents.PhysicsPointMassComponent, Angulos._3d.Components.PhysicsComponents.PhysicsRigidBodyComponent, and Angulos._3d.Components.RenderComponents.RigidRenderComponent.

ParentMeshUpdate()

void Angulos._3d.Components.IAngulosComponent.ParentMeshUpdate ( )

inline

Called when a the parent mesh changes.

Implemented in Angulos._3d.Components.PhysicsComponents.PhysicsPointMassComponent, and Angulos._3d.Components.PhysicsComponents.PhysicsRigidBodyComponent.

Start()

void Angulos._3d.Components.IAngulosComponent.Start

(

)

Start the work.

Implemented in Angulos._3d.Components.PhysicsComponents.PhysicsPointMassComponent, Angulos._3d.Components.PhysicsComponents.PhysicsRigidBodyComponent, and Angulos._3d.Components.RenderComponents.RigidRenderComponent.

TickCall()

void Angulos._3d.Components.IAngulosComponent.TickCall

(

)

Called every frame.

Implemented in Angulos._3d.Components.PhysicsComponents.PhysicsPointMassComponent, Angulos._3d.Components.PhysicsComponents.PhysicsRigidBodyComponent, and Angulos._3d.Components.RenderComponents.RigidRenderComponent.

UpdateCall()

void Angulos._3d.Components.IAngulosComponent.UpdateCall ( )

inline

Called every [UpdateTiming] frames.

Implemented in Angulos._3d.Components.PhysicsComponents.PhysicsPointMassComponent, and Angulos._3d.Components.PhysicsComponents.PhysicsRigidBodyComponent.

Property Documentation

calls

ushort Angulos._3d.Components.IAngulosComponent.calls

getset

You shouldn't change this. You can, but it will affect the timing of the UpdateCall call. Just remove the throw new NotImplementedException() in the getter.

Implemented in Angulos._3d.Components.PhysicsComponents.PhysicsPointMassComponent, Angulos._3d.Components.PhysicsComponents.PhysicsRigidBodyComponent, and Angulos._3d.Components.RenderComponents.RigidRenderComponent.

EnableFrameIndependentUpdate

bool Angulos._3d.Components.IAngulosComponent.EnableFrameIndependentUpdate

getset

If frame independant updates should be performed. This should only be used for time-sensitive components like animation.

Implemented in Angulos._3d.Components.PhysicsComponents.PhysicsPointMassComponent, Angulos._3d.Components.PhysicsComponents.PhysicsRigidBodyComponent, and Angulos._3d.Components.RenderComponents.RigidRenderComponent.

FrameIndependentUpdateTiming

TimeSpan Angulos._3d.Components.IAngulosComponent.FrameIndependentUpdateTiming

getset

The time between each call of the FrameIndependentUpdate method. Measured in actual time, not loops.

Implemented in Angulos._3d.Components.PhysicsComponents.PhysicsPointMassComponent, and Angulos._3d.Components.RenderComponents.RigidRenderComponent.

HasBeenInitialized

bool Angulos._3d.Components.IAngulosComponent.HasBeenInitialized

getset

If the component has been initialized. If false, the ECS will call Start() on the component.

Implemented in Angulos._3d.Components.PhysicsComponents.PhysicsPointMassComponent, Angulos._3d.Components.PhysicsComponents.PhysicsRigidBodyComponent, and Angulos._3d.Components.RenderComponents.RigidRenderComponent.

Parent

SimulatedObject Angulos._3d.Components.IAngulosComponent.Parent

getset

The parent object of the component.

Implemented in Angulos._3d.Components.PhysicsComponents.PhysicsPointMassComponent, Angulos._3d.Components.PhysicsComponents.PhysicsRigidBodyComponent, and Angulos._3d.Components.RenderComponents.RigidRenderComponent.

UpdateTiming

ushort Angulos._3d.Components.IAngulosComponent.UpdateTiming

getset

The number of calls to do before executing Update. 2 means Tick will be called 2x more than Update.

Implemented in Angulos._3d.Components.PhysicsComponents.PhysicsPointMassComponent, Angulos._3d.Components.PhysicsComponents.PhysicsRigidBodyComponent, and Angulos._3d.Components.RenderComponents.RigidRenderComponent.

Working

bool Angulos._3d.Components.IAngulosComponent.Working

getset

If the component is currently working.

Implemented in Angulos._3d.Components.PhysicsComponents.PhysicsPointMassComponent, Angulos._3d.Components.PhysicsComponents.PhysicsRigidBodyComponent, and Angulos._3d.Components.RenderComponents.RigidRenderComponent.

---

The documentation for this interface was generated from the following file:

• Sharp/_3d/Components/IAngulosComponent.cs
